4. Automated Journaling
Background:
Instead of mere data retrieval in our previous tutorials, what if we aimed to automate the process of manual journaling?
Xero supports CSV template upload for manual journals. However, it still requires end-users to go through a manual process of logging in and downloading & uploading CSV templates.

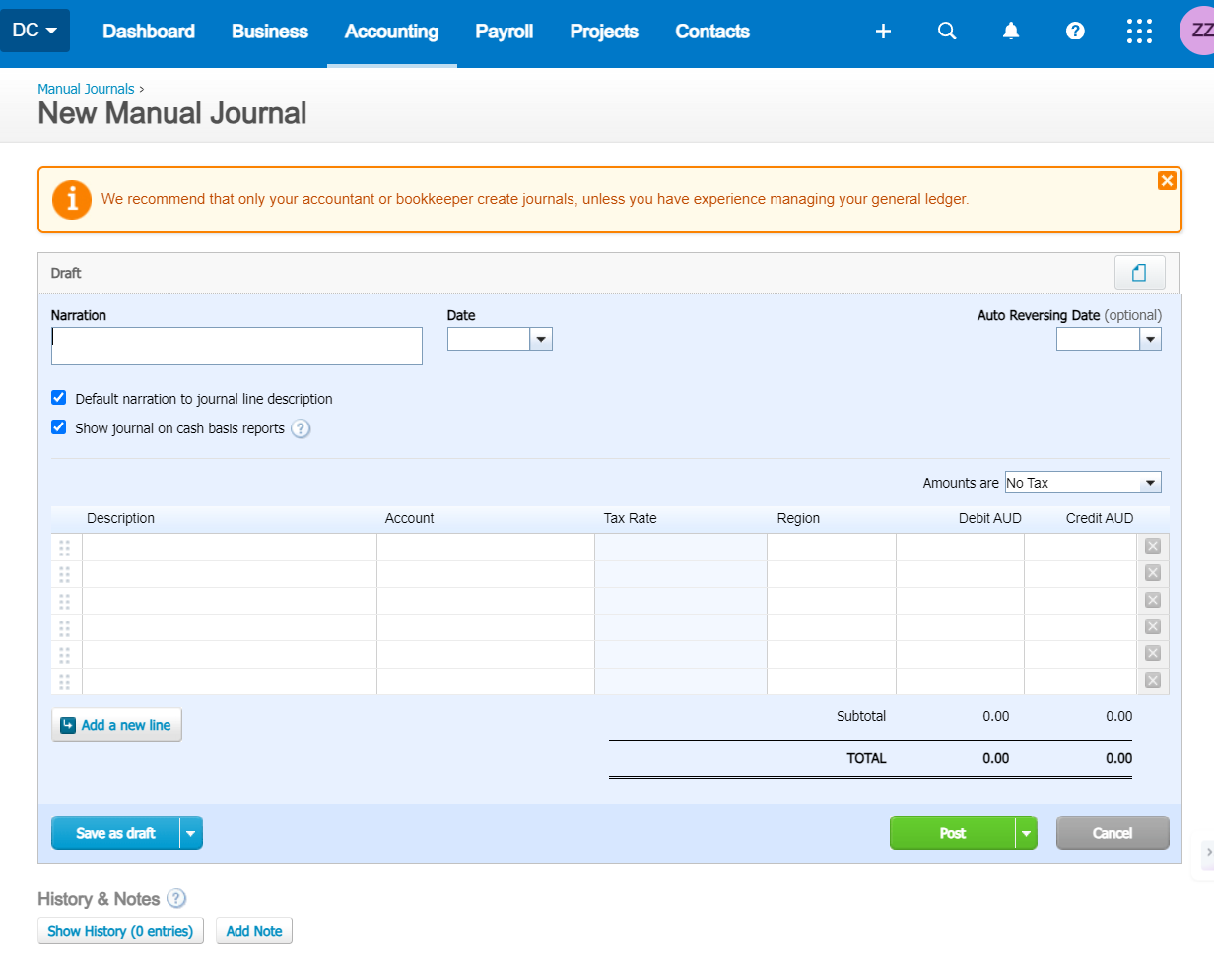

“Manual” manual journaling

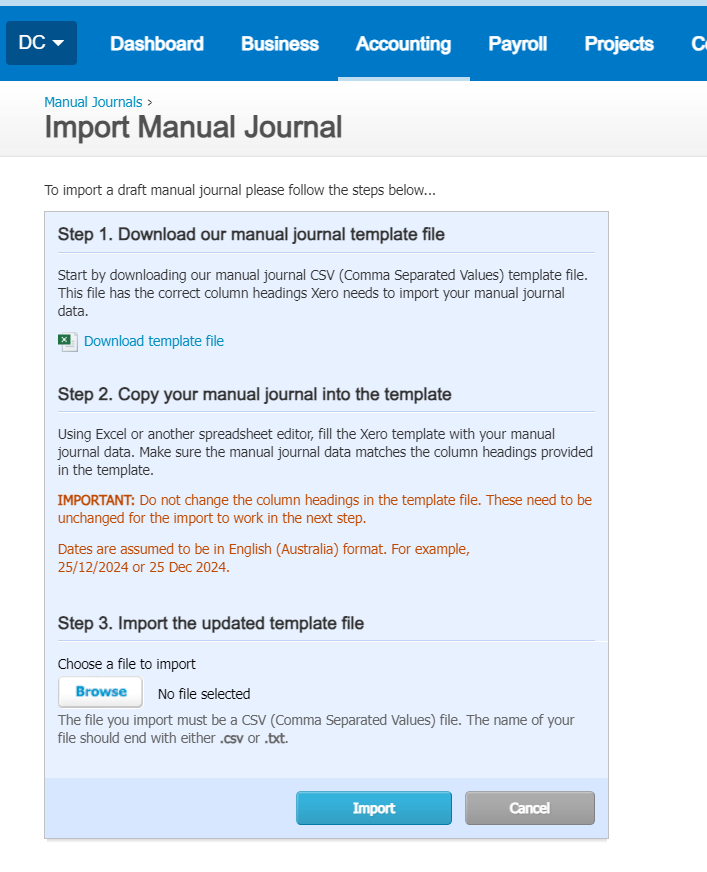

CSV import
Through utilizing POST Manual Journals API calls, we have the capability to automate the posting of manual journals directly within Excel. This eliminates the need for accountants to log into their accounting system and manually navigate to the journal entry interface, a process susceptible to human error and time-consuming, particularly when multiple journal entries are uploaded simultaneously.
Goal
Our current objective is to establish an automation pipeline that empowers end-users to transmit journal entry details directly from Excel to Xero, eliminating the requirement to exit Excel or engage with the accounting system, specifically Xero, during this process.

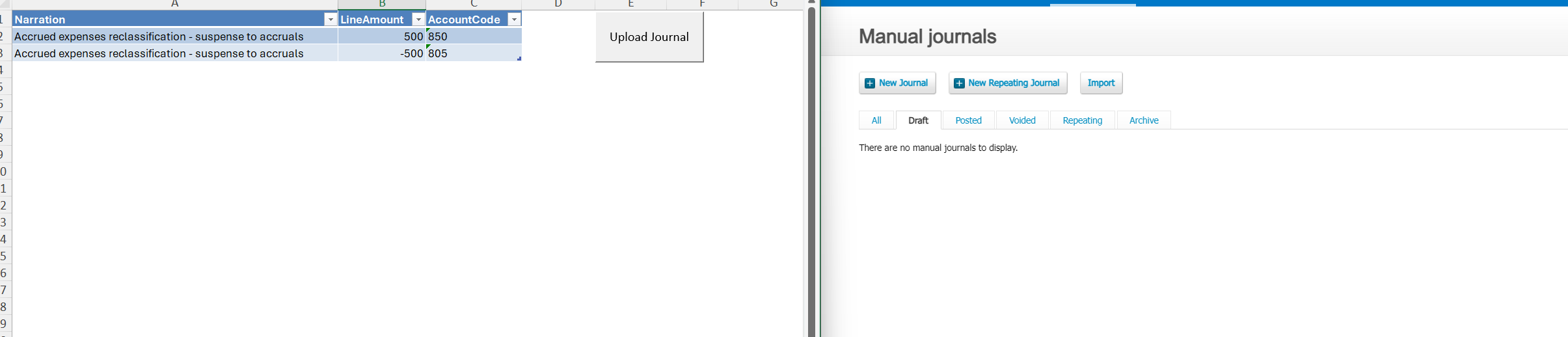

Simplified front-end example
Steps
Requirements: Python, Excel.
To accomplish our goal, we would need to execute several steps:
Install and configure the xlwings library in Python, along with the xlwings Excel add-in.
Create a Python script to establish a connection with Xero.
Create a Python function to convert tabular data into JSON format.
Create a VBA macro to trigger the Python scripts within Excel.
Step 1: Install and configure the xlwings library in Python, along with the xlwings Excel add-in.
Excel does not have native functionality in regard to running Python scripts (excluding Microsoft’s recent cloud-based “Python in Excel” addition). We therefore require an external Python library, xlwings, to facilitate the connection between Excel and Python.
To install xlwings, activate your virtual environment (refer prior tutorials), and then enter pip install xlwings in a PowerShell terminal. Should you encounter any additional missing packages during the following process, use the pip install command to install them. Enter pip list to check whether you have successfully installed xlwings.
For detailed documentation on xlwings, please visit here.

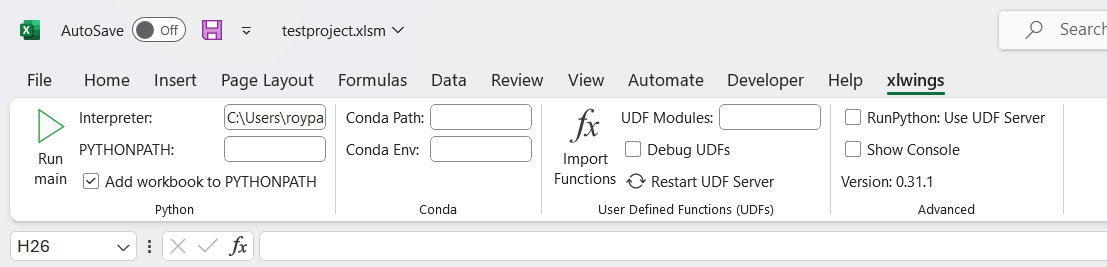

We will now install the xlwings Excel add-in. Close all open Excel instances (if any) and enter xlwings addin install in your PowerShell terminal. Once complete, check whether the installation has been successful by opening a new Excel instance. You should see a new add-in at the end of your top ribbon. This will grant Excel the ability to trigger Python scripts.
Step 2: Create a Python script to establish a connection with Xero.
Similar to our prior procedures relating to trial balances and transaction listings, we can modify our pre-existing Python script’s variables to post manual journals instead. Refer the script below:
Click here to expand
import requests
import webbrowser
import base64
import xlwings as xw
import pandas as pd
client_id = '<INSERT_ID_HERE>'
client_secret = '<INSERT_SECRET_HERE>'
redirect_url = 'https://xero.com/'
scope = 'offline_access accounting.transactions'
b64_id_secret = base64.b64encode(bytes(client_id + ':' + client_secret, 'utf-8')).decode('utf-8')
def XeroFirstAuth():
# 1. Send a user to authorize your app
auth_url = ('''https://login.xero.com/identity/connect/authorize?''' +
'''response_type=code''' +
'''&client_id=''' + client_id +
'''&redirect_uri=''' + redirect_url +
'''&scope=''' + scope +
'''&state=123''')
webbrowser.open_new(auth_url)
# 2. Users are redirected back to you with a code
auth_res_url = input('What is the response URL? ')
start_number = auth_res_url.find('code=') + len('code=')
end_number = auth_res_url.find('&scope')
auth_code = auth_res_url[start_number:end_number]
print(auth_code)
print('\n')
# 3. Exchange the code
exchange_code_url = 'https://identity.xero.com/connect/token'
response = requests.post(exchange_code_url,
headers = {
'Authorization': 'Basic ' + b64_id_secret
},
data = {
'grant_type': 'authorization_code',
'code': auth_code,
'redirect_uri': redirect_url
})
json_response = response.json()
print(json_response)
print('\n')
# 4. Receive your tokens
return [json_response['access_token'], json_response['refresh_token']]
# 5. Check the full set of tenants you've been authorized to access
def XeroTenants(access_token):
connections_url = 'https://api.xero.com/connections'
response = requests.get(connections_url,
headers={
'Authorization': 'Bearer ' + access_token,
'Content-Type': 'application/json'
})
json_response = response.json()
print(json_response)
for tenants in json_response:
json_dict = tenants
return json_dict['tenantId']
# 6.1 Refreshing access tokens
def XeroRefreshToken(refresh_token):
token_refresh_url = 'https://identity.xero.com/connect/token'
response = requests.post(token_refresh_url,
headers={
'Authorization': 'Basic ' + b64_id_secret,
'Content-Type': 'application/x-www-form-urlencoded'
},
data={
'grant_type': 'refresh_token',
'refresh_token': refresh_token
})
json_response = response.json()
print(json_response)
new_refresh_token = json_response['refresh_token']
rt_file = open('C:/Users/roypa/Downloads/refresh_token.txt', 'w')
rt_file.write(new_refresh_token)
rt_file.close()
return [json_response['access_token'], json_response['refresh_token']]
def convert_json():
# Open the Excel workbook
wb = xw.books.active
# Get the Excel table
table = wb.sheets[0].api.ListObjects("input")
# Get the table data
data = table.Range.Value
# Extract the Narration from the first cell
narration = data[1][0] # Assuming the first row is headers and the narration is in the first column
# Separate the headers and the data
headers = data[0]
data_rows = data[1:]
# Convert the data to a pandas DataFrame
df = pd.DataFrame(data_rows, columns=headers)
# Convert DataFrame to desired JSON format
json_data = {
"Narration": narration,
"JournalLines": df[["LineAmount", "AccountCode"]].to_dict(orient="records")
}
return json_data
# 6.2 Call the API
def import_journals(json_data1):
old_refresh_token = open('C:/Users/roypa/Downloads/refresh_token.txt', 'r').read()
new_tokens = XeroRefreshToken(old_refresh_token)
xero_tenant_id = XeroTenants(new_tokens[0])
get_url = 'https://api.xero.com/api.xro/2.0/ManualJournals'
response = requests.post(get_url,
headers={
'Authorization': 'Bearer ' + new_tokens[0],
'Xero-tenant-id': xero_tenant_id,
'Accept': 'application/json'
},
json=json_data1)
# Check if the request was successful
if response.status_code == 200:
return "Data successfully imported to Xero."
else:
return "Error importing data to Xero: " + response.text
# xero_output = open('C:/Users/roypa/Downloads/xero_output.json', 'w')
# xero_output.write(response.text)
# xero_output.close()
# old_tokens = XeroFirstAuth()
# XeroRefreshToken(old_tokens[1])
# Call the convert_json function to get the JSON data
json_data3 = convert_json()
print(json_data3)
result = import_journals(json_data3)
print(result)
Step 3: Create a Python function to convert tabular data into JSON format.
Please ensure you have installed the pandas library by running pip install pandas in PowerShell.
The convert_json() function, as described above, utilizes the pandas library to convert tabular Excel data into dataframes. The data can then be manipulated for further processing and upload.
Assuming there is a defined table named “input” in the first sheet of our Excel workpaper (to be created), the function extracts the journal entries’ relevant information such as account code, journal amount, and description. This data is formatted to meet Xero’s manual journal requirements, where the journal is posted in the current open period. The function extracts the description from the first row (excluding headers), and adds all the listed journal amounts and account codes.
The resulting dataframe is converted into a dictionary using the to_dict() method, resembling the structure of JSON files. Finally, this converted data can be passed to the import_journals() function for upload. Refer to the script for further details.
Step 4: Create a VBA macro to trigger Python scripts within Excel.
We now need a front-end for the end-user to input data. Open up PowerShell or any terminal available (e.g. VS Code or PyCharm) and create a new xlwings Excel project via the command xlwings quickstart myproject. You will need to activate your virtual environment first. You can also change myproject to any name you like.
Once done, you should see a new folder with an Excel
.xlsmworkbook and a.pyfile in it.Ignore the
.pyfile for now and open the Excel file. Create a table and assign a defined name for the table “input”.Add an VBA form button via the “Developer” tab in the top ribbon - you may need to enable it if absent. If so, on the File tab, go to Options > Customize Ribbon. Under Customize the Ribbon and under Main Tabs, select the Developer check box. Rename your button to “Upload Journal” or any other preferred name.

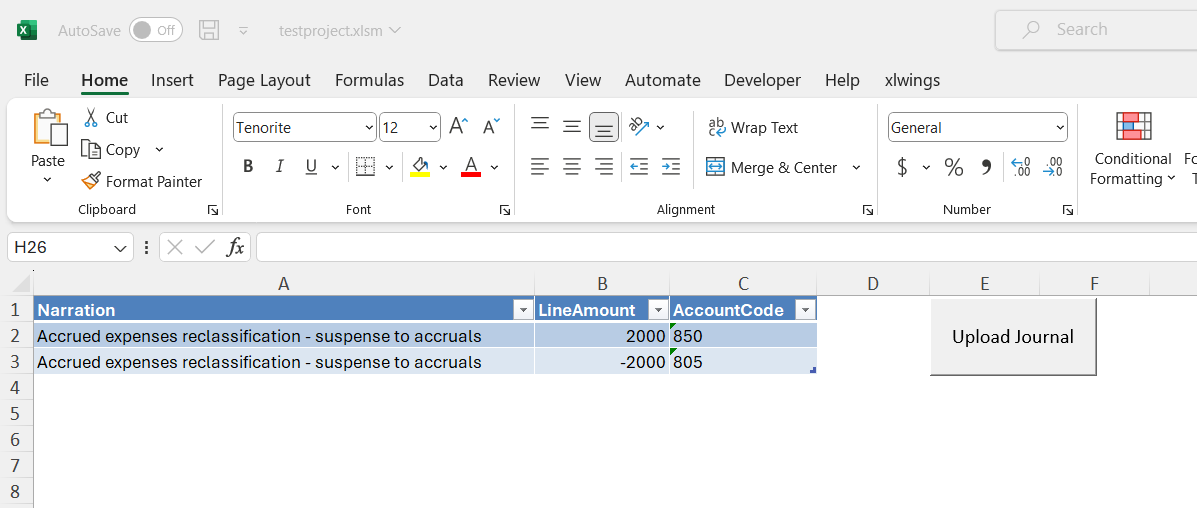

Your workbook should look like this (minus the data):
Simplified front-end example
Now we need to setup the VBA macro. Press Alt + F11 to open the VBA editor interface.
You will notice that there are existing modules created by xlwings. Go to Module 1 and copy the first SampleCall() sample macro, paste the copy below and change .main() to any function name you prefer - this will be the name for the upload function in our revised Python script (to be created below). In this case, the Python function will be called .upload().
1
2
3
4
Public Sub GenerateJSON()
mymodule = Left(ThisWorkbook.name, (InStrRev(ThisWorkbook.name, ".", -1, vbTextCompare) - 1))
RunPython "import " & mymodule & ";" & mymodule & ".upload()"
End Sub
Go back to the VBA button, right click and “Assign Macro”. Choose GenerateJSON() as per the VBA macro name above.
This will direct Excel to search within the .py file previously mentioned for the specified function. Now all we need to do is to copy over our script to said .py file. Do not change the .py file’s name.
Open the newly created .py file within the xlwings project folder previously ignored. Copy over the contents in our prior Python script into this one (refer below). Copy over the dependencies as well. Do not overwrite any pre-existing code in the .py file. There are minor adjustments required - convert_json() has been renamed upload() and an additional call to import_journals() within the upload() function has been added. Refer the revised script below for the mentioned adjustments:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
import requests
import webbrowser
import base64
import xlwings as xw
import pandas as pd
def main():
wb = xw.Book.caller()
sheet = wb.sheets[0]
if sheet["A1"].value == "Hello xlwings!":
sheet["A1"].value = "Bye xlwings!"
else:
sheet["A1"].value = "Hello xlwings!"
if __name__ == "__main__":
xw.Book("testproject.xlsm").set_mock_caller()
main()
client_id = '<INSERT_ID_HERE>'
client_secret = '<INSERT_SECRET_HERE>'
redirect_url = 'https://xero.com/'
scope = 'offline_access accounting.transactions'
b64_id_secret = base64.b64encode(bytes(client_id + ':' + client_secret, 'utf-8')).decode('utf-8')
def XeroFirstAuth():
# 1. Send a user to authorize your app
auth_url = ('''https://login.xero.com/identity/connect/authorize?''' +
'''response_type=code''' +
'''&client_id=''' + client_id +
'''&redirect_uri=''' + redirect_url +
'''&scope=''' + scope +
'''&state=123''')
webbrowser.open_new(auth_url)
# 2. Users are redirected back to you with a code
auth_res_url = input('What is the response URL? ')
start_number = auth_res_url.find('code=') + len('code=')
end_number = auth_res_url.find('&scope')
auth_code = auth_res_url[start_number:end_number]
print(auth_code)
print('\n')
# 3. Exchange the code
exchange_code_url = 'https://identity.xero.com/connect/token'
response = requests.post(exchange_code_url,
headers={
'Authorization': 'Basic ' + b64_id_secret
},
data={
'grant_type': 'authorization_code',
'code': auth_code,
'redirect_uri': redirect_url
})
json_response = response.json()
print(json_response)
print('\n')
# 4. Receive your tokens
return [json_response['access_token'], json_response['refresh_token']]
# 5. Check the full set of tenants you've been authorized to access
def XeroTenants(access_token):
connections_url = 'https://api.xero.com/connections'
response = requests.get(connections_url,
headers={
'Authorization': 'Bearer ' + access_token,
'Content-Type': 'application/json'
})
json_response = response.json()
print(json_response)
for tenants in json_response:
json_dict = tenants
return json_dict['tenantId']
# 6.1 Refreshing access tokens
def XeroRefreshToken(refresh_token):
token_refresh_url = 'https://identity.xero.com/connect/token'
response = requests.post(token_refresh_url,
headers={
'Authorization': 'Basic ' + b64_id_secret,
'Content-Type': 'application/x-www-form-urlencoded'
},
data={
'grant_type': 'refresh_token',
'refresh_token': refresh_token
})
json_response = response.json()
print(json_response)
new_refresh_token = json_response['refresh_token']
rt_file = open('C:/Users/roypa/Downloads/refresh_token.txt', 'w')
rt_file.write(new_refresh_token)
rt_file.close()
return [json_response['access_token'], json_response['refresh_token']]
def upload():
# Open the Excel workbook
wb = xw.books.active
# Get the Excel table
table = wb.sheets[0].api.ListObjects("input")
# Get the table data
data = table.Range.Value
# Extract the Narration from the first cell
narration = data[1][0] # Assuming the first row is headers and the narration is in the first column
# Separate the headers and the data
headers = data[0]
data_rows = data[1:]
# Convert the data to a pandas DataFrame
df = pd.DataFrame(data_rows, columns=headers)
# Convert DataFrame to desired JSON format
json_data = {
"Narration": narration,
"JournalLines": df[["LineAmount", "AccountCode"]].to_dict(orient="records")
}
import_journals(json_data)
# 6.2 Call the API
def import_journals(json_data1):
old_refresh_token = open('C:/Users/roypa/Downloads/refresh_token.txt', 'r').read()
new_tokens = XeroRefreshToken(old_refresh_token)
xero_tenant_id = XeroTenants(new_tokens[0])
get_url = 'https://api.xero.com/api.xro/2.0/ManualJournals'
response = requests.post(get_url,
headers={
'Authorization': 'Bearer ' + new_tokens[0],
'Xero-tenant-id': xero_tenant_id,
'Accept': 'application/json'
},
json=json_data1)
# Check if the request was successful
if response.status_code == 200:
return "Data successfully imported to Xero."
else:
return "Error importing data to Xero: " + response.text
As mentioned above, the journal import is now contained within the .upload() function. This is due to the fact that we have setup our VBA code to call functions, but not to run entire Python scripts. Save the .py file and exit. The setup is now complete.
Go back to the Excel workpaper and populate the table with the accounts and amounts you wish to post - refer Xero’s Chart of Accounts for details. Click on the “Upload” button and let the script execute.

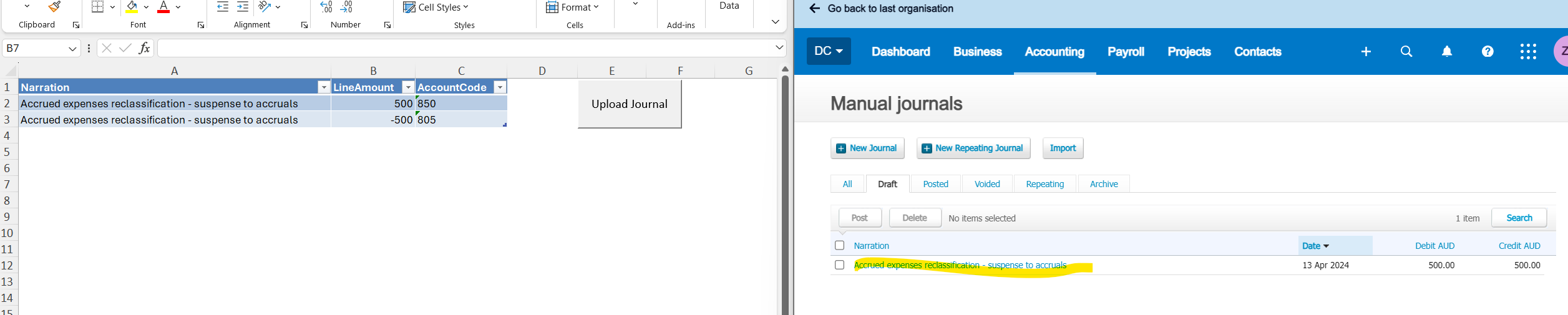

Before upload
After upload

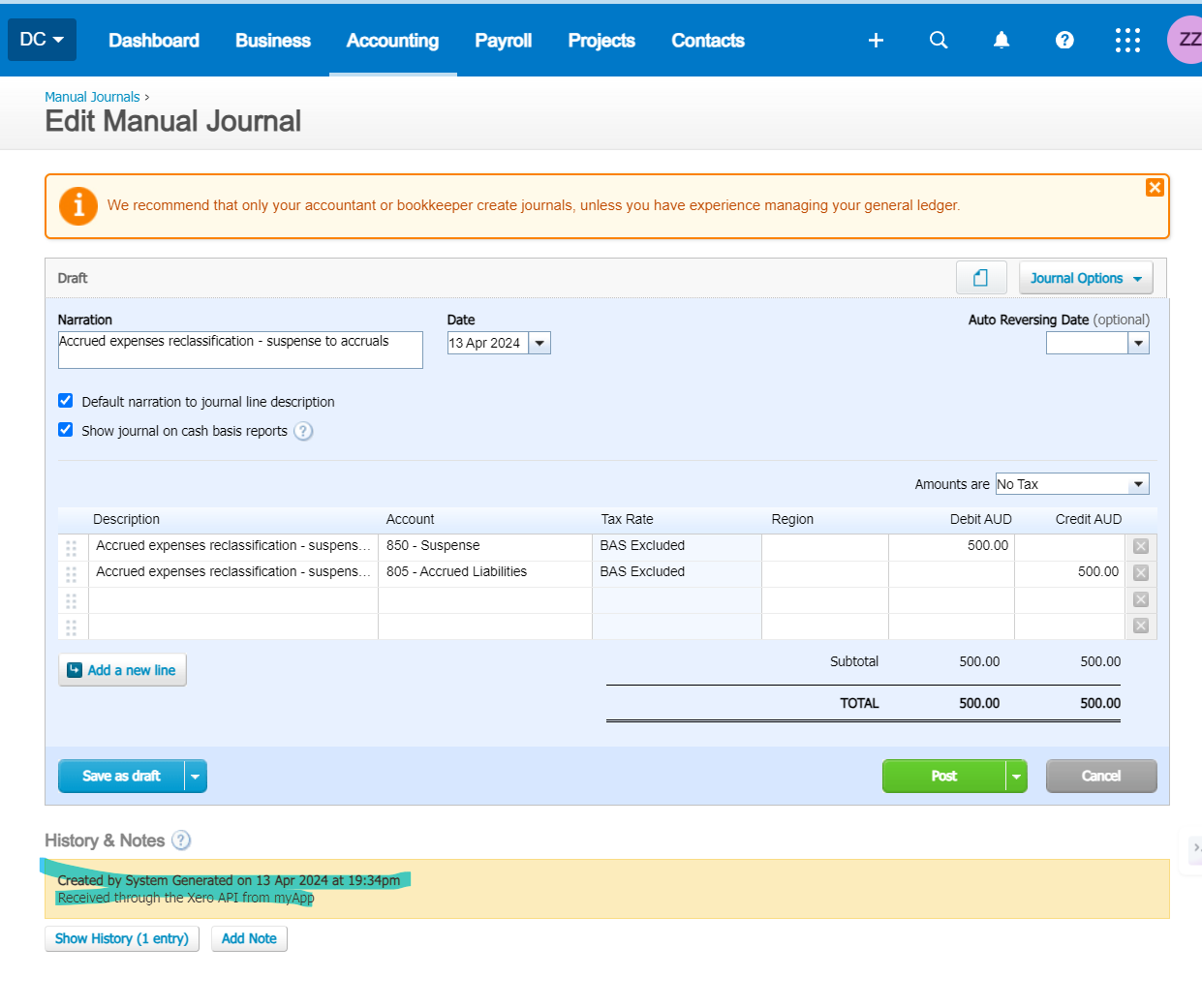

Journal details
You can see that the journal has been uploaded successfully. All that is left is for the financial accountant/manager to approve the journals.
Once approved, you can see that our manual journal has flowed through to all reports:

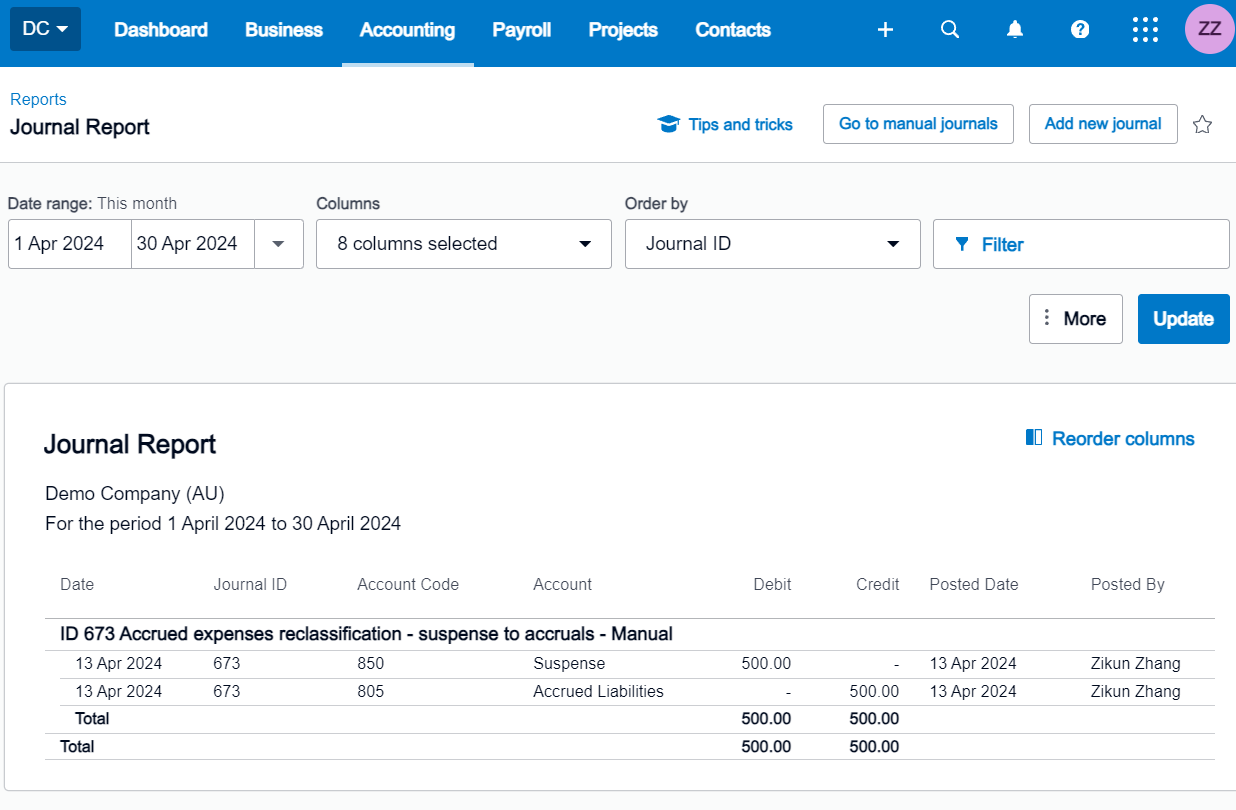

Account Transactions

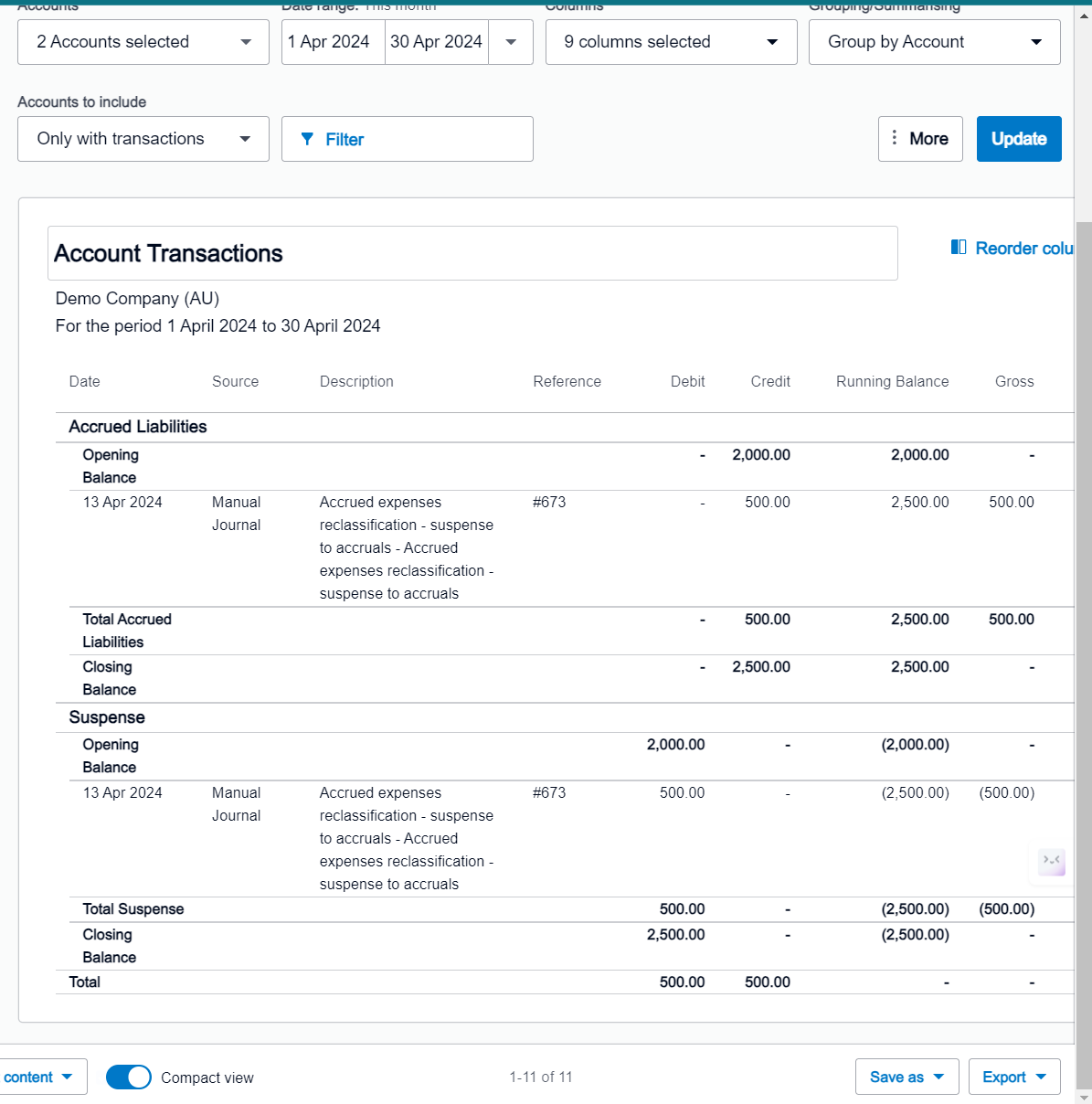

Account Transactions

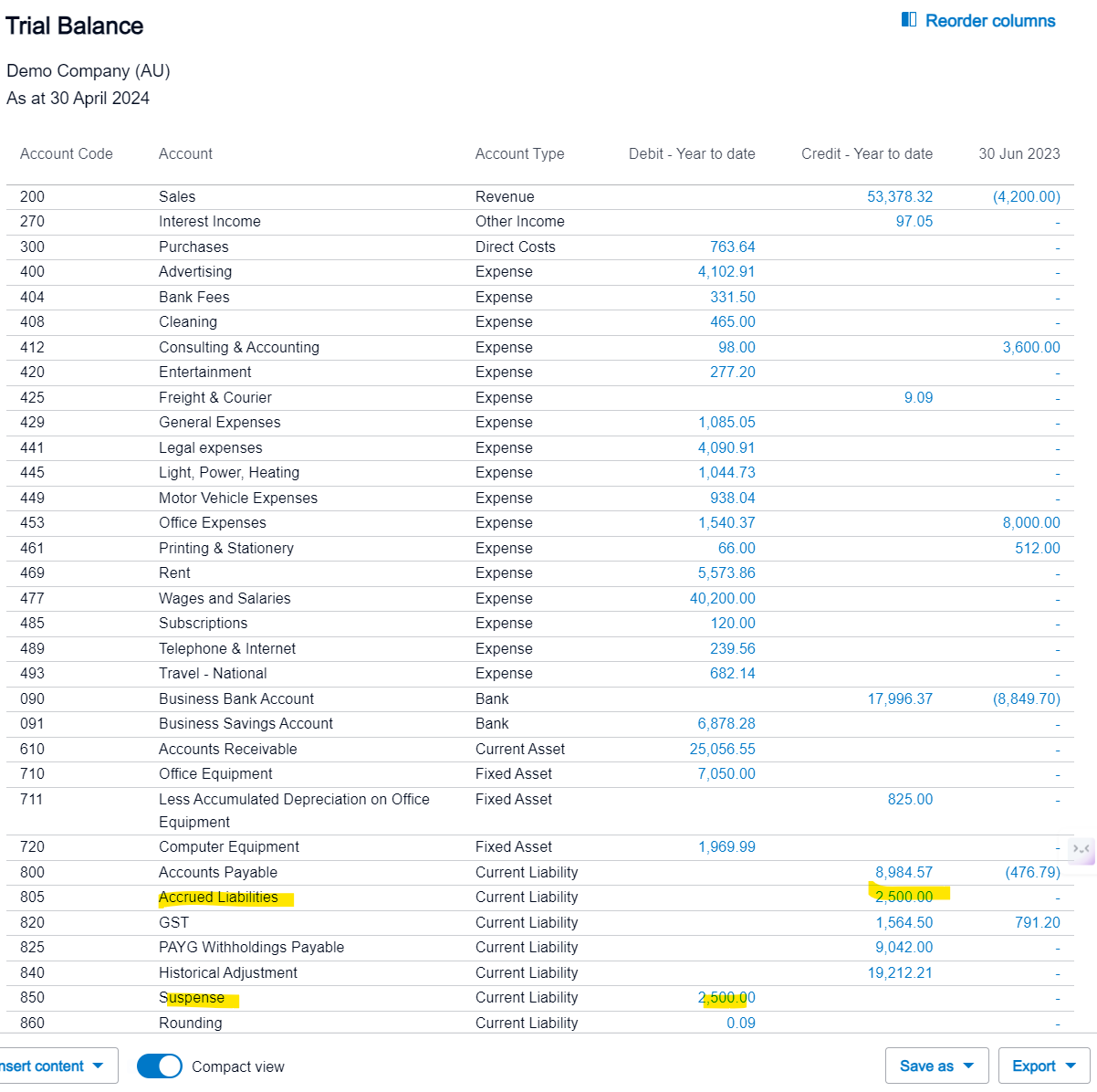

Trial Balance

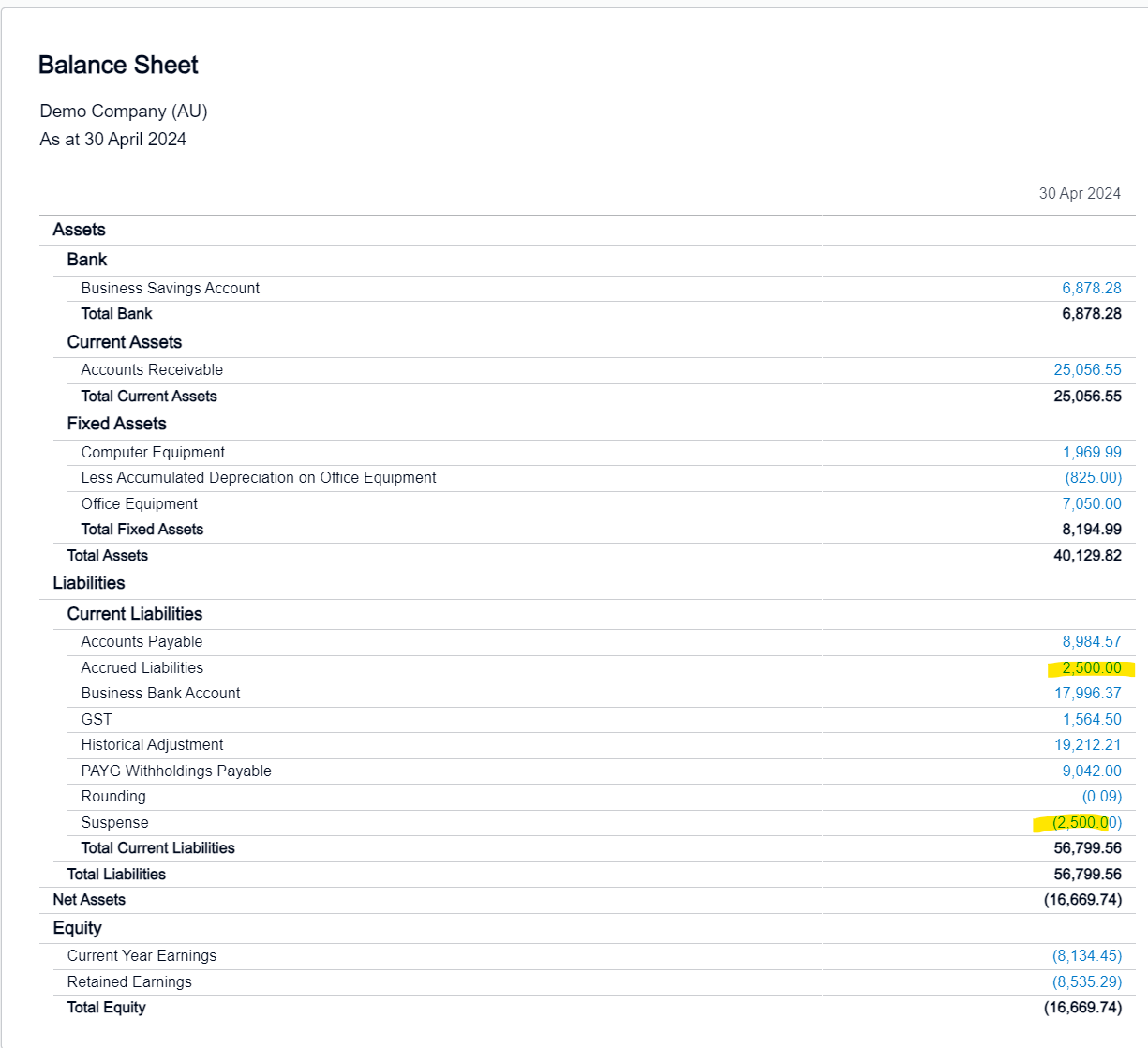

Balance sheet
Outcome
This solution offers significant scalability, enabling the user to automate the posting of multiple journals simultaneously. The upload process for accountants remains consistent regardless of the number of journals being uploaded. Additionally, this script can be replicated for use across different companies (e.g. subsidiaries) and projects (e.g. project accounting) if required.
Furthermore, the journal table within the Excel frontend spreadsheet can be connected to refreshable Power Query connections. With the appropriate configuration and logic design, a large number of journals can be automated, requiring only end-user review and approval. These tools will be further explored in subsequent tutorials.
